Kaia MEV Auction SDK Guide for Searchers

Kaia v2.1.0 introduced the MEV Auction system, enabling searchers to participate in fair, transparent auctions for MEV opportunities. This guide provides a comprehensive walkthrough of the searcher workflow using the Kaia MEV Auction SDK.

info

This guide uses Kairos testnet endpoints and contract addresses. The mainnet launch is scheduled for mid-December 2025. When deploying to mainnet, update all endpoints and contract addresses accordingly.

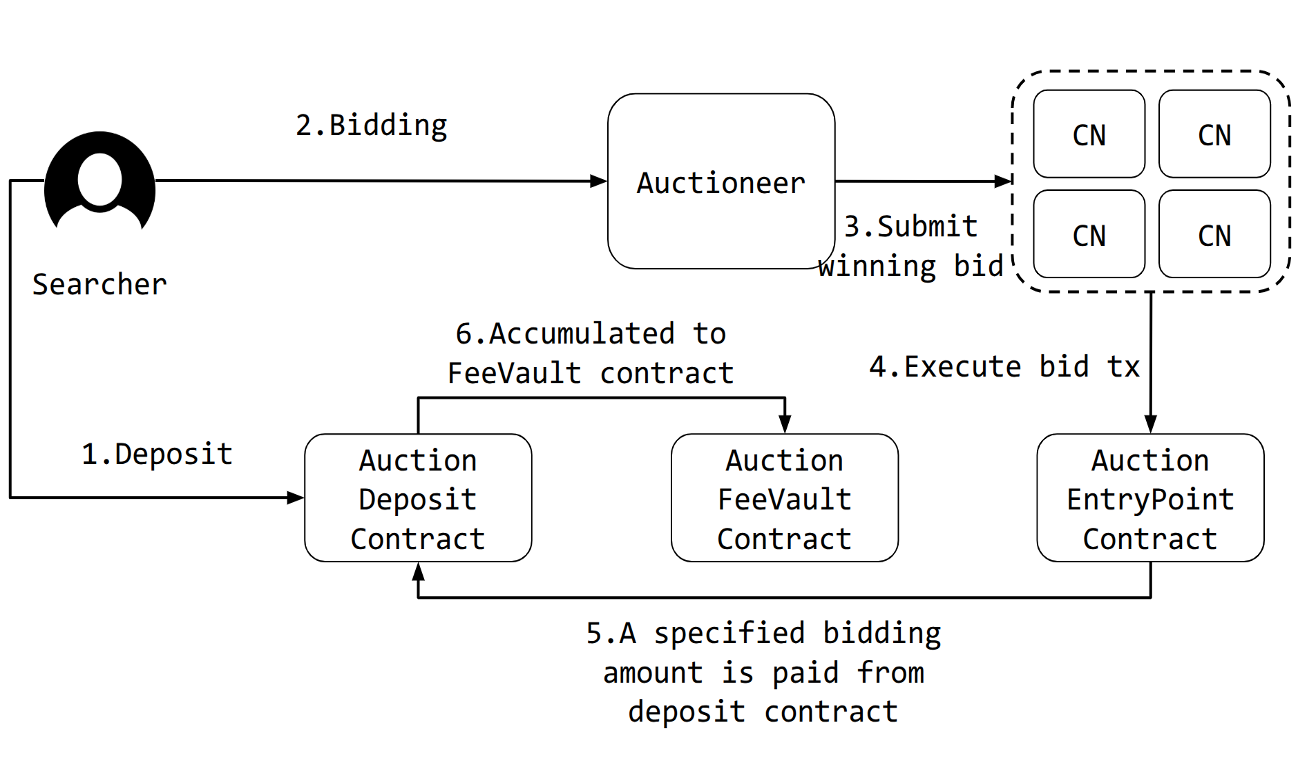

The searcher workflow consists of four main steps:

  1. Deposit: Searchers deposit KAIA tokens into the AuctionDepositVault to fund bidding activity
  2. Bid: Searchers compete by submitting sealed bids to the Auctioneer for backrun slots
  3. Submit Winning Bid: The Auctioneer selects winners and forwards winning bids to Consensus Nodes (CNs)
  4. Execute Bid Transaction: CNs execute the winning bid transactions through the AuctionEntryPoint contract

For detailed technical background, see KIP-249.

Prerequisites​

Before starting, ensure you have:

  • A funded wallet with KAIA tokens for deposits
  • Go installed (version 1.25+) for SDK examples
  • Access to Kaia network endpoints (this guide uses Kairos testnet)
  • (Optional) Foundry installed (for cast commands)

Network Endpoints:

  • Kairos (testnet): https://public-en-kairos.node.kaia.io
  • Mainnet: https://public-en.node.kaia.io

Contract Addresses (Kairos):

  • AuctionFeeVault: 0xE4e7d880786c53b6EA6cfA848Eb3a05eE97b2aCC
  • AuctionDepositVault: 0x2A168bCdeB9006eC6E71f44B7686c9a9863C1FBc
  • AuctionEntryPoint: 0x2fF66A8b9f133ca4774bEAd723b8a92fA1e28480

For mainnet contract addresses (available after mainnet launch), check Contract Addresses.

Monitor MEV Opportunities

Searchers can identify profitable transactions by:

  • Subscribing to the Auctioneer's pending transaction API: This API streams transactions directly from Consensus Nodes, allowing you to detect MEV opportunities in real-time. See the Subscribe Pending Transactions section below.
  • Monitoring the network mempool independently: Implement your own MEV opportunity detection logic by subscribing pending tx.

Step 1: Deposit Funds​

The AuctionDepositVault holds your bidding balance. Your deposit must cover both your bid amounts and estimated gas fees for bid execution.

Understanding Deposit Requirements​

Your deposit balance must cover:

  • Bid amount: The KAIA you're willing to pay for winning the auction
  • Estimated gas fee: Gas consumed during bid execution (deducted post-execution and sent to block proposers)
Always maintain sufficient deposit balance

If your balance is insufficient to cover the bid amount plus estimated gas fees, your bid will be rejected by the Auctioneer during validation.

Deposit Methods​

The contract provides two deposit methods:

Method 1: deposit()

Deposits using the sender's balance. The deposit is credited to the sender's account.


# Deploy deposit of 200 KAIA
cast send --private-key <YOUR_PRIVATE_KEY> 0x2A168bCdeB9006eC6E71f44B7686c9a9863C1FBc "deposit()" --rpc-url "https://public-en-kairos.node.kaia.io" --confirmations 0 --value 200000000000000000000

Method 2: depositFor(address searcher)

Deposits on behalf of another account. Useful for funding multiple searcher addresses from a single source.


cast send --private-key <YOUR_PRIVATE_KEY> 0x2A168bCdeB9006eC6E71f44B7686c9a9863C1FBc "depositFor(address)" <SEARCHER_ADDRESS> --rpc-url "https://public-en-kairos.node.kaia.io" --confirmations 0 --value 200000000000000000000

Check Your Balance​

Query your current deposit balance:


cast call 0x2A168bCdeB9006eC6E71f44B7686c9a9863C1FBc "depositBalances(address)(uint256)" <YOUR_ADDRESS> --rpc-url "https://public-en-kairos.node.kaia.io"

For detailed deposit examples, see the DEPOSIT.md guide.

Step 2: Submit Bids​

Once you identify a profitable transaction, submit a bid to the Auctioneer. Bids are sealed (hidden until the auction closes) and compete based on bid amount.

Bid Structure​

A bid consists of the following fields (as defined in types.go):


type AuctionBid struct {
TargetTxRaw []byte // Raw transaction bytes of target tx
TargetTxHash common.Hash // Transaction to backrun
BlockNumber *big.Int // Target block number
Sender common.Address // Your searcher address
To common.Address // Contract to call
Nonce uint64 // Current nonce from AuctionEntryPoint
Bid *big.Int // Your bid in KAIA
CallGasLimit uint64 // Gas limit for your backrun logic
Data []byte // Encoded function call
SearcherSig []byte // EIP-712 signature from searcher
}

info

After you submit your bid, the Auctioneer validates and adds its own signature (AuctioneerSignature) before forwarding winning bids to Consensus Nodes. You only need to provide the SearcherSig (your EIP-712 signature).

Submit a Bid​

The SDK provides a complete working example at example/submitbid.go. The example demonstrates:

  • Establishing an HTTPS connection with the Auctioneer
  • Detecting new blocks from the EN endpoint
  • Generating target transactions and corresponding bids
  • Submitting bids to the Auctioneer

Action Required: Replace your private key in the code before running it. Check the TODO: comments in the source code.

Run the example:


# From repository root
go run example/submitbid.go

Bid Validation​

The Auctioneer, Proposer, and Smart Contract each perform specific validation checks on bids. Key validation rules include:

  • Block number: Must be currentBlockNumber + 1 or currentBlockNumber + 2
  • Bid amount: Must be greater than 0 and less than or equal to your available deposit balance
  • Call data size: Must not exceed BidTxMaxDataSize (64KB)
  • Call gas limit: Must not exceed BidTxMaxCallGasLimit (10,000,000)
  • Nonce: Must match your current nonce in AuctionEntryPoint. Query it with:

    cast call 0x2fF66A8b9f133ca4774bEAd723b8a92fA1e28480 "nonces(address)(uint256)" <YOUR_ADDRESS> --rpc-url "https://public-en-kairos.node.kaia.io"

  • Signature: Must be a valid EIP-712 signature (see submitbid.go for implementation)
  • Deposit coverage: Must have sufficient deposit to cover bid_amount + estimated_gas_fee
  • Uniqueness: Cannot have another winning bid in the same block (unless targeting the same transaction)
  • Auctioneer signature: Must be valid (added by Auctioneer after your submission)

For a complete validation matrix showing which entity performs which checks, see the bid validation guide.

Step 3: Subscribe to Pending Transactions​

The Auctioneer provides a WebSocket subscription service that streams pending transactions directly from Consensus Nodes. This allows searchers to detect MEV opportunities in real-time.

The SDK provides a complete example at example/subscribe_pendingtx.go.

The example demonstrates:

  • Establishing a WebSocket connection to the Auctioneer
  • Subscribing to the pending transaction stream
  • Processing incoming transactions to identify MEV opportunities

Run the example:


# From repository root
go run example/subscribe_pendingtx.go

The subscription continuously prints transaction hashes as pending transactions are detected. You can extend this example to implement your own MEV detection logic.

Step 4: Understanding Execution​

When your bid wins, the Consensus Node executes it through the AuctionEntryPoint contract:

Execution Flow​

The execution process consists of three phases:

  1. Validation Phase: Contract validates block number, signatures, nonce, and bid amount
  2. Bid Payment Phase: Bid amount deducted from your deposit and sent to ecosystem fund
  3. Execution Phase: Your backrun is executed by the EntryPoint contract (bid payment occurs regardless of execution outcome)

Key Security Features:

  • Validators execute bids on your behalf (prevents reverting bids to dodge payment)
  • Nonce increments prevent replay attacks
  • Dual signatures (searcher + auctioneer) unauthorized bid replacement or manipulation
  • Bid payment occurs regardless of backrun execution result

For detailed execution flow, see the ENTRYPOINT.md guide.

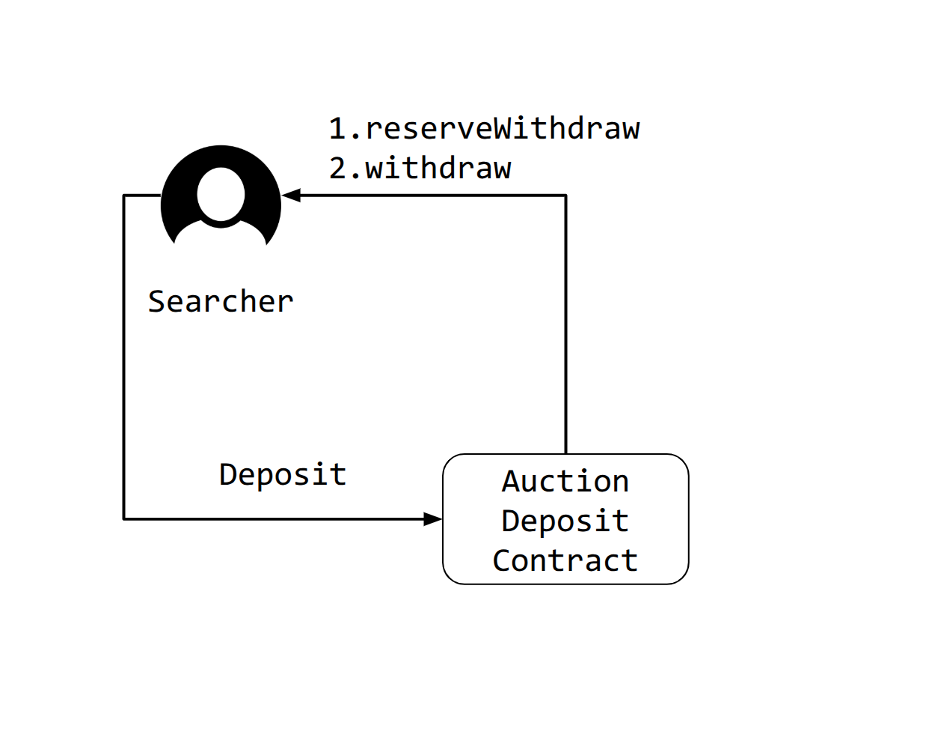

Step 5: Withdraw Funds​

Withdrawing requires a two-step process with a lock period:

1. Reserve Withdrawal​

Initiate withdrawal and start the 60-second lock period:


cast send --private-key <YOUR_PRIVATE_KEY> 0x2A168bCdeB9006eC6E71f44B7686c9a9863C1FBc "reserveWithdraw()" --rpc-url "https://public-en-kairos.node.kaia.io" --confirmations 0

2. Complete Withdrawal​

After 60 seconds, transfer the reserved amount:


cast send --private-key <YOUR_PRIVATE_KEY> 0x2A168bCdeB9006eC6E71f44B7686c9a9863C1FBc "withdraw()" --rpc-url "https://public-en-kairos.node.kaia.io" --confirmations 0

Security Note

The two-step withdrawal process with a lock period:

  • Prevents flash exits during active auction periods
  • Maintains protocol integrity by ensuring searchers honor their bids
  • Protects against rapid capital manipulation attacks

API Reference​

The Auctioneer provides two primary APIs for searchers:

1. Submit Bid API

  • Endpoint: POST /api/v1/auction/send
  • Purpose: Submit sealed bids for MEV opportunities

2. Pending Transaction Subscription

  • Endpoint: GET /api/v1/subscriber/pendingtx
  • Purpose: Real-time stream of pending transactions from Consensus Nodes
  • Example: See implementation example in subscribe_pendingtx.go

Complete API Documentation:

Troubleshooting​

Common Issues​

Issue CategorySymptomsCauseSolution
Insufficient BalanceBid rejected by AuctioneerDeposit balance doesn't cover bid amount + estimated gas feesCheck balance with depositBalances() and deposit more KAIA
Nonce MismatchBid rejected or execution failsNonce doesn't match current nonce in AuctionEntryPointQuery current nonce with nonces() before each bid. Remember: nonces increment only on execution, not submission
Block Number RangeBid rejected by AuctioneerTarget block outside allowed range [current+1, current+allowFutureBlock]Ensure block number is within range (typically +1 or +2). See FAQ for dual-submission strategy
Invalid SignatureBid rejected by AuctioneerIncorrect EIP-712 signature constructionVerify domain separator and type hash. Reference submitbid.go for correct implementation
Gas Limit IssuesExecution fails or bid rejectedCallGasLimit too low or exceeds maximum (10,000,000)Test backrun logic on testnet to measure actual gas consumption

FAQ​

Subscription​

Q: How many concurrent connections are allowed per searcher?

A: Only one pending transaction subscription connection is allowed per searcher address.

Q: How long do subscription connections remain active?

A: Connections are automatically closed after 24 hours. Note that connections may be closed earlier than 24 hours if rolling updates are in progress.

API Performance and Latency​

Q: How can I minimize API latency when submitting bids?

A: The Auctioneer utilizes an L7 Load Balancer with the HTTPS protocol. The initial handshake consumes time depending on network state. To bypass this initial delay when sending subsequent bid APIs, it is strongly recommended to establish a keep-alive connection.

Q: Should I be careful about API rate limits?

A: To prevent being blocked by the Auctioneer API server, do not send the ping API too many times within a short period.

Q: Does geographic location affect latency?

A: Yes. The Auctioneer server is running in the GCP KR (Seoul) region. You are recommended to host your infrastructure in a geographically close region to minimize latency and reduce geographic delay.

Bid Timing and Block Targeting​

Q: Why does my bid sometimes target the wrong block number?

A: The timing of your bid submission is highly sensitive to the CN (Consensus Node) mining time. If the auction starts late (close to the mining time), the bid transaction would be inserted into the block after the next one (block number +2 instead of +1). This means you should set your target block number to +2.

Q: How can I improve my bid inclusion rate?

A: The target block number is inherently sensitive to the CN mining schedule: if you target block +2 but the transaction is inserted at block +1 due to earlier processing, the bid will fail. Therefore, it is recommended to maximize inclusion probability by sending your bid transaction two times: once with a target block number of +1 and once with a target block number of +2.

Best Practices​

  • Monitor Deposit Balance: Maintain sufficient balance to cover multiple bids
  • Handle Nonces Carefully: Always query the latest nonce before bidding
  • Optimize Detection: Faster MEV detection improves competitive advantage
  • Test on Kairos: Validate your strategy on testnet before mainnet deployment
  • Monitor Results: Track auction outcomes through the MEV Explorer to refine your bidding strategy
  • Set Appropriate Gas Limits: Balance between sufficient gas and cost efficiency
