Connect to Kairos

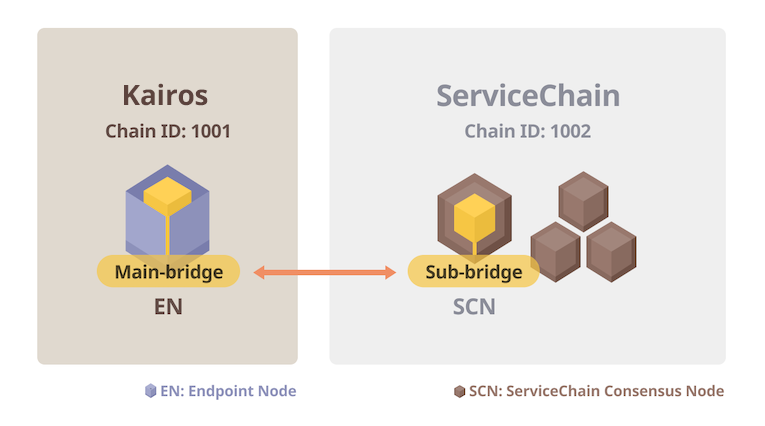

This section covers how to connect your 4-node ServiceChain network to the Kairos network. You will set up a Kairos EN and connect the EN with one of your SCNs. Then you will enable the anchoring feature to put ServiceChain block information onto the Kairos network.

Prerequisites

• 1 Linux or MacOS server for EN
• Minimum hardware requirements for testing
  • CPU: 4-core (Intel Xeon or equivalent), RAM: 16GB, HDD: 50GB
  • Please refer to the System Requirements for more explanation.
• Download the Kairos EN executable. For the full list of downloadable binaries, see Download.
• Assumptions and Limitations
  • A ServiceChain network is installed and running. Please refer to Setting up a 4-node Service Chain to setup a network.
  • A Kairos EN.
  • One EN can only connect to one SCN since only one-to-one connection is supported.
  • Every SCN does not have to connect to the EN.

Step 0: Install Kairos EN

The installation is the uncompression of the downloaded package. Extract the archive on the EN server.

EN-01$ tar xvf ken-baobab-vX.X.X-XXXXX-amd64.tar.gz

Step 1: Preparing genesis.json

From the EN server, download the genesis.json for Kairos network.

EN-01$ curl -X GET https://packages.kaia.io/kairos/genesis.json -o ~/genesis.json

Step 2: EN Node Initialization

Now, we will initialize the EN node using the genesis file. Execute the following command. It will create the data folder storing the chain data and logs on your home directory. You can change the data folder using the --datadir directive.

EN-01$ ken init --datadir ~/data ~/genesis.json

Step 3: Configure the EN Node

Go to the ken installation folder and rename mv kend_baobab.conf kend.conf, then edit conf/kend.conf as follows.

...

NETWORK="baobab"

...

SC_MAIN_BRIDGE=1

...

DATA_DIR=~/data

...

Step 4: Start the EN Node

EN-01$ kend start

Starting kscnd: OK

You can check block sync status by watching kaia.blockNumber. If this number is not 0, the node is working fine. Downloading all blocks on the Kairos network may take a long time depending on network conditions and hardware performance, so we recommend using Fast Sync to synchronize blocks.

EN-01$ ken attach --datadir ~/data

> kaia.blockNumber

21073

If you want to stop a node, you can use the command kend stop

Step 5: Check KNI of EN Node

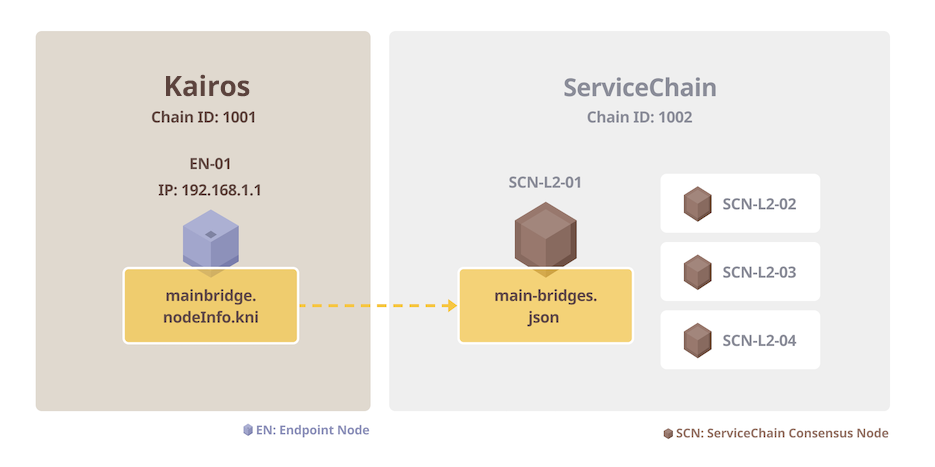

Take note of EN-01's KNI which is the information used to connect from an SCN-L2-01 node. This value will be used in the next step when generating main-bridges.json.

EN-01$ ken attach --datadir ~/data

> mainbridge.nodeInfo.kni

"kni://0f7aa6499553...25bae@[::]:50505?discport=0"

Step 6: Create main-bridges.json

Log on to an SCN-L2-01 (note: not the EN-01 node) and create main-bridges.json on ~/data. Replace [::] located after @ letter with EN-01 node's IP address.

SCN-L2-01$ echo '["kni://0f7aa6499553...25bae@192.168.1.1:50505?discport=0"]' > ~/data/main-bridges.json

Step 7: Configure SCN then Restart kscn

From the SCN-L2-01 node's shell, edit kscn-XXXXX-amd64/conf/kscnd.conf. If SC_SUB_BRIDGE is set to 1, data anchoring starts automatically when the SCN-L2-01 node starts. In this example, SC_PARENT_CHAIN_ID is set to 1001 because the chainID of the parent chain, Kairos, is 1001. SC_ANCHORING_PERIOD is the parameter that decides the period to send an anchoring tx to the main chain. By setting the value to 10, you configure the node to perform anchoring every 10 blocks. The default value is 1.

...

SC_SUB_BRIDGE=1

...

SC_PARENT_CHAIN_ID=1001

...

SC_ANCHORING_PERIOD=10

...

Restart kscn by executing the following command:

SCN-L2-01$ kscnd stop

Shutting down kscnd: Killed

SCN-L2-01$ kscnd start

Starting kscnd: OK

Check if the SCN-L2-01 is connected to the EN-01 by checking subbridge.peers.length

SCN-L2-01$ kscn attach --datadir ~/data

> subbridge.peers.length

1

Anchoring

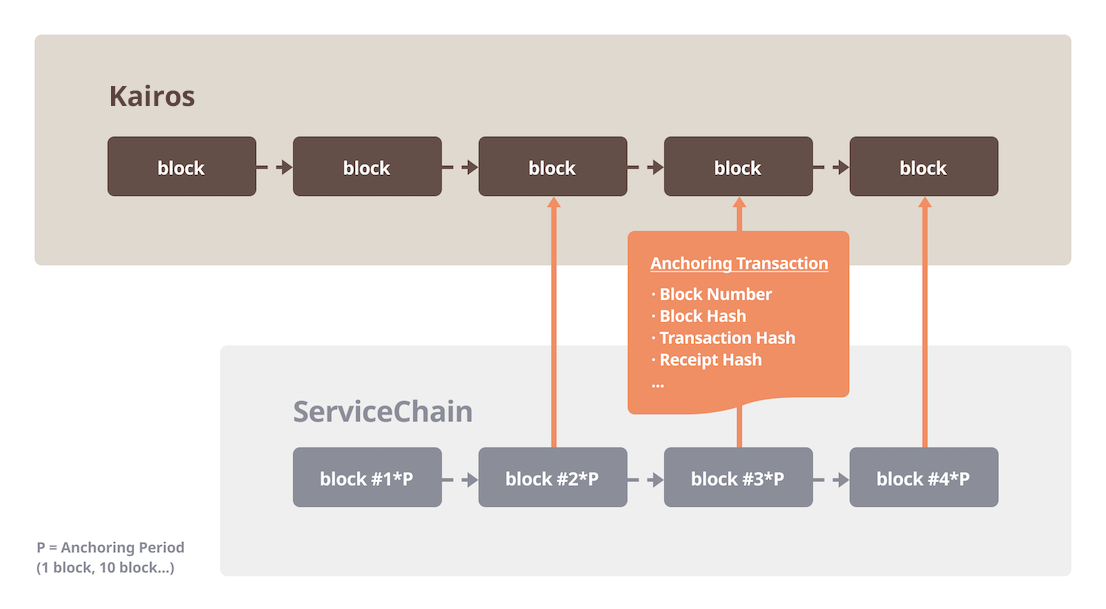

After finishing the EN-01 and SCN-L2-01 connection, you can log ServiceChain block information on the parent chain via Anchoring. In this section, you will top up a parent operator account, enable Anchoring, and check the anchored block number.

Step 1: Get KAIA to test anchoring

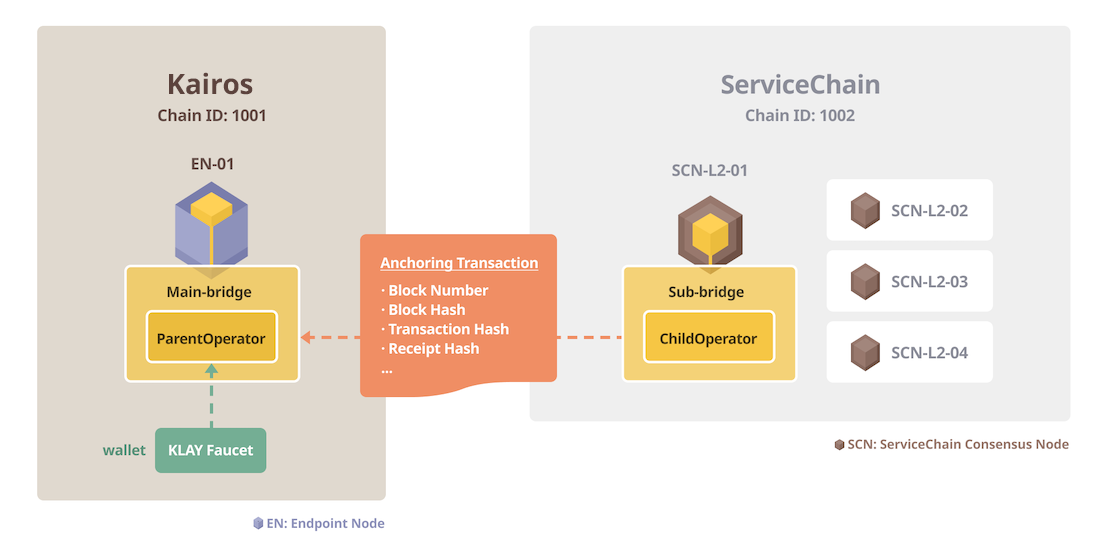

Anchoring requires SCN-L2-01 to make an anchoring transaction to Kairos. So subbridge.parentOperator account should have enough KAIA to pay the transaction fee. Get some KAIA from Kairos Faucet and transfer some KAIA to the parentOperator. For data anchoring in real service, parentOperator needs to have enough KAIA for transaction fee.

SCN-L2-01$ kscn attach --datadir ~/data

> subbridge.parentOperator

"0x3ce216beeafc62d20547376396e89528e1d778ca"

Step 2: Start Anchoring

To start anchoring, execute the following command:

SCN-L2-01$ kscn attach --datadir ~/data

> subbridge.anchoring(true)

true

After anchoring starts, you can check the latest block anchored to Kairos by using subbridge.latestAnchoredBlockNumber. Please note that this only works after the EN already followed up on the latest block of Kairos. By default, SCN-L2-01 tries anchoring on every block from the block on which anchoring is turned on. The anchoring period can be set by changing SC_ANCHORING_PERIOD. If the value is set to 10, the node tries anchoring when the block number is a multiple of 10.

SCN-L2-01$ kscn attach --datadir ~/data

> subbridge.latestAnchoredBlockNumber

100
