Foundryを使用してスマートコントラクトをデプロイする
はじめに
FoundryはRustで書かれたスマートコントラクト開発フレームワークで、開発者はコマンドラインからsolidityスクリプトを使ってコントラクトの管理とコンパイル、テストの実行、コントラクトのデプロイ、ネットワークとのやり取りができる。
Foundryは、高速でモジュール化されたスマート・コントラクト開発を可能にする4つの主要CLIツールで構成されている:
- Forge: Forgeを使ってスマートコントラクトのデプロイ、テスト、コンパイルができる。
- Cast:CastはEVMスマートコントラクトとのやり取りを簡単にするものであり、 チェーンデータの取得、トランザクションの送信などが含まれる。 これには、チェーンデータの取得、トランザクションの送信などが含まれる。
- Anvil:ローカルノードをスピンアップする必要がありますか? AnvilはFoundryが提供するローカルノード環境である。 AnvilはFoundryが提供するローカルノード環境である。
- Chisel:高速で便利で冗長なsolidity REPL。
このガイドでは、次のことを説明する:
- 簡単な鋳造プロジェクトを立ち上げる。
- Foundryを使用してスマート・コントラクトのサンプルをコンパイルし、テストします。
- Foundryを使用してスマートコントラクトをKaia Kairosネットワークにデプロイします。
- キャストとアンビルでメインネットをフォークする。
前提条件
このチュートリアルに従うには、次のことが前提条件となる:
- コードエディタ: VS Codeなどのソースコードエディタ。
- MetaMask:コントラクトのデプロイ、トランザクションへの署名、コントラクトとの対話に使用される。
- RPCエンドポイント:サポートされているエンドポイント・プロバイダーの1つから取得できます。
- FaucetからKAIAをテスト: 口座に十分なKAIAを入金してください。
- RustとFoundryをインストールする。
開発環境のセットアップ
Foundryのインストールが成功したかどうかを確認するには、以下のコマンドを実行してください:
forge -V
出力
foundryのインストールに成功すると、foundryで使用できるCLIツール(forge、cast、anvil、chisel)にアクセスできるようになります。 次のステップでfoundryプロジェクトをセットアップしてみよう:
**ステップ1新しいプロジェクトを開始するには、以下のコマンドを実行します:
forge init foundry_example
ステップ 2:プロジェクトフォルダに移動します。
cd foundry_example
ファウンドリー・プロジェクトを初期化した後、ディレクトリーには以下が含まれます:
- src:スマートコントラクトのデフォルトディレクトリ。
- tests:テスト用のデフォルト・ディレクトリ。
- foundry.toml:デフォルトのプロジェクト設定ファイル。
- lib: プロジェクトの依存関係のデフォルト・ディレクトリ。
- script:solidityスクリプトファイルのデフォルトディレクトリです。
foundry.tomlの設定
プロジェクトのセットアップができたので、次は.env
ファイルを作成して変数を追加する。 Foundryはプロジェクトディレクトリにある.envファイルを自動的に読み込みます。
.envファイルはこのフォーマットに従っている必要がある:
kairos_rpc_url=paste_rpc_url
次にfoundry.toml
ファイルを編集する。 scaffoldの後、プロジェクトのルートにすでに1つあるはずだ。
ファイルの最後に以下の行を追加する:
[rpc_endpoints]kairos = "${KAIROS_RPC_URL}"
これはKaia Kairos TestnetのRPCエイリアスを作成します。
アカウントのインポート
このガイドでは、MetaMaskにすでに存在する開発者アカウントをインポートして、forge script
や cast send
などの秘密鍵を必要とするメソッドで --account
オプションを使ってアクセスできるようにする。

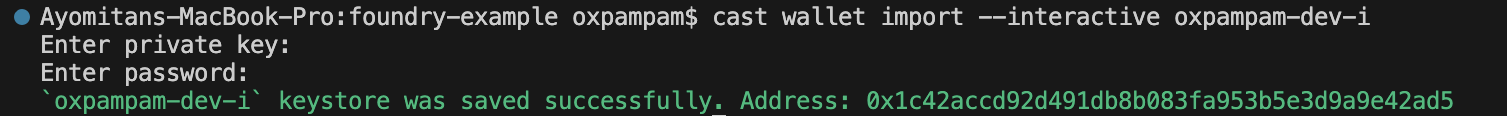

既存のウォレットをインポートするには、以下のコマンドを実行します:
cast wallet import --interactive oxpampam-dev-i
秘密鍵を入力します:パスワードを入力
Sample smart contract
In this section, we will be using the sample counter contract in the initialized foundry project. The counter.sol
file in the src/
folder should look like this:
// SPDX-License-Identifier: UNLICENSEDpragma solidity ^0.8.13;contract Counter { uint256 public number; function setNumber(uint256 newNumber) public { number = newNumber; } function increment() public { number++; }}
Code Walkthrough
This is your smart contract. Line 1 shows it uses the Solidity version 0.8.13 or greater. From lines 4-12, a smart contract Counter
is created. This contract simply stores a new number using the setNumber function and increments it by calling the increment function.
Testing smart contract
Foundry allows us to write tests in solidity as opposed to writing tests in javascript in other smart contract development frameworks. In our initialized foundry project, the test/Counter.t.sol
is an example of a test written in solidity. The code looks like this:
// SPDX-License-Identifier: UNLICENSEDpragma solidity ^0.8.13;import "forge-std/Test.sol";import "../src/Counter.sol";contract CounterTest is Test { Counter public counter; function setUp() public { counter = new Counter(); counter.setNumber(0); } function testIncrement() public { counter.increment(); assertEq(counter.number(), 1); } function testSetNumber(uint256 x) public { counter.setNumber(x); assertEq(counter.number(), x); }}
The code above shows you imported forge standard library and Counter.sol.
The tests above check the following:
- Is the number increasing?
- Is the number equal to the set number?

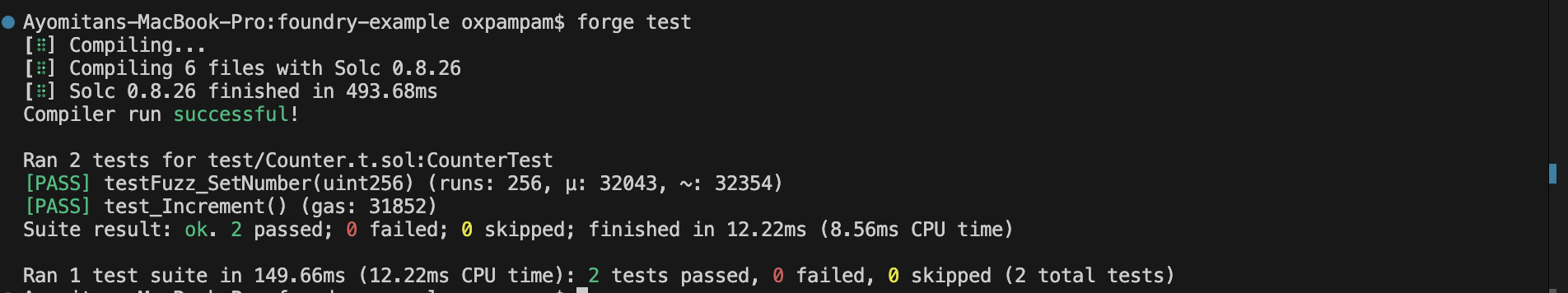

To check if your test works fine, run the following command:
forge test
Output
To learn more about writing tests, advanced testing, and other features, refer to Foundry's documentation.
Compiling your contracts
Compile your contract with this command:
forge build
Deploying your contracts
To deploy a contract using foundry, you must provide an RPC URL and a private key of the account that will deploy the contract. Take a look at the list of rpc-providers on Kaia to find your rpc-url, and create an account using MetaMask.
このガイドでは、ファウンドリが提供する2つの契約展開方法を使用する:
Forge Createの使用

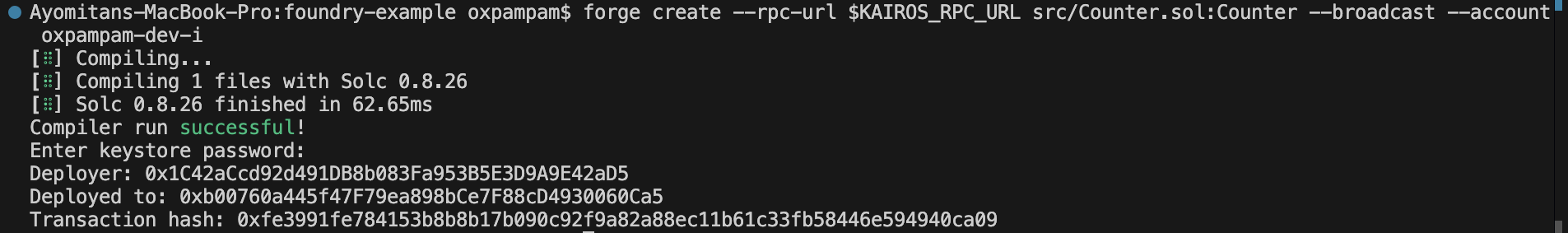

ステップ 1:forge createを使用してカイアカイロスネットワークに契約をデプロイするには、以下のコマンドを実行します:
#source .env# 契約のデプロイforge create --rpc-url $KAIROS_RPC_URL src/Counter.sol:Counter --broadcast --account oxpampam-dev-i
キーストアのパスワードを入力します:<KEYSTORE_PASSWORD>
開発環境での基本的なテストネット使用以上のデプロイメントには、セキュリティ強化のため、ハードウェアウォレットまたはパスワードで保護されたキーストアを使用することを強くお勧めします。

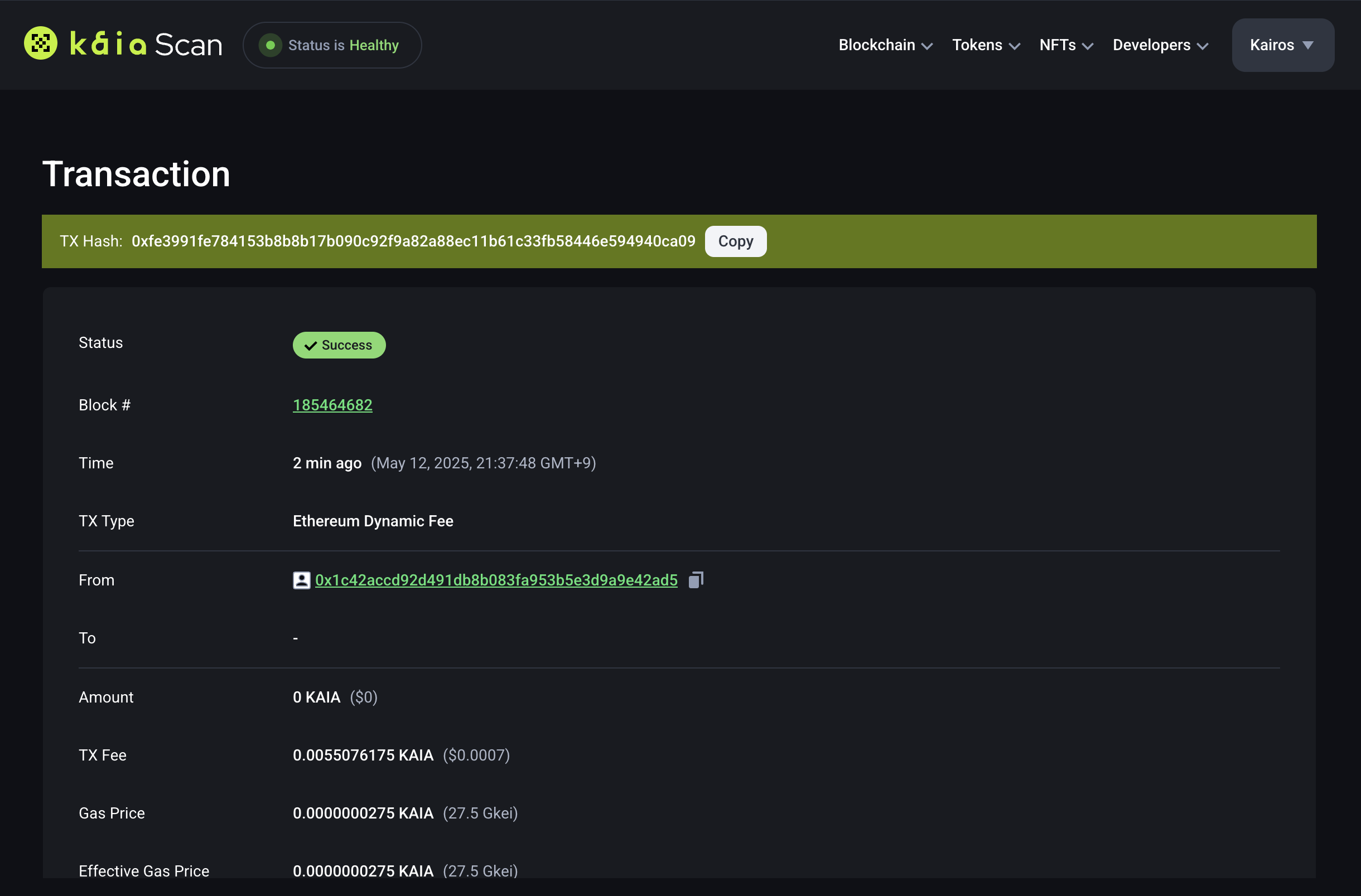

ステップ 2:Kaiascanを開き、カウンター契約が正常に展開されたかどうかを確認します。
Step 3: Copy and paste the transaction hash in the search field and press Enter. You should see the recently deployed contract.
鍛造スクリプトの使用

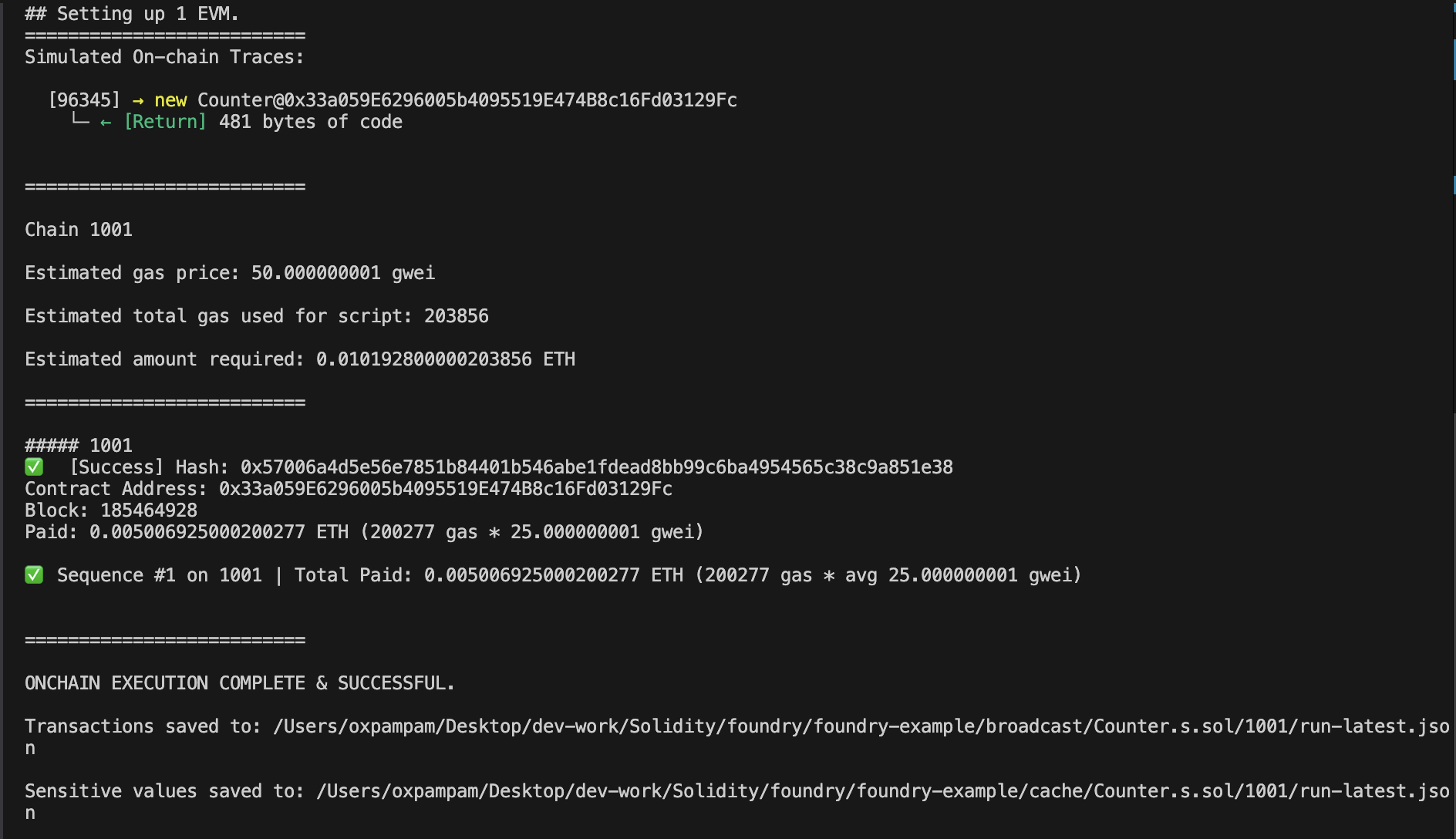

forgeスクリプトを使ってカイア・カイロスのネットワークに契約をデプロイするには、以下のコマンドを実行します:
#source .env# 契約のデプロイforge script --chain 1001 script/Counter.s.sol:CounterScript --rpc-url $KAIROS_RPC_URL --broadcast -vvv --account oxpampam-dev-i
Interacting with the contract
スマート・コントラクトのデプロイに成功したら、次のステップは通常、その関数を呼び出して実行することでスマート・コントラクトと対話することだ。 さっそくCastを使って、カイア・カイロス・ネットワークに配備されたコントラクトとやりとりしてみよう。
In this section, you will learn how to use the cast call to execute the read-only
function and cast send to execute write
functions.
**A. キャストコール
契約書に格納されている番号を取得するには、number
関数を呼び出すことになる。 Run the command below to see this in action.
cast call YOUR_CONTRACT_ADDRESS "number()" --rpc-url $KAIROS_RPC_URL
Example
キャストコール 0xb00760a445f47F79ea898bCe7F88cD4930060Ca5 "number()" --rpc-url $KAIROS_RPC_URL
Output
You should get this data in hexadecimal format:
0x0000000000000000000000000000000000000000000000000000000000000000
しかし、望む結果を得るには、cast
を使って上記の結果を変換する。 In this case, the data is a number, so you can convert it into base 10 to get the result 0:
cast --to-base 0x0000000000000000000000000000000000000000000000000000000000000000 10
Output
B. キャスト・センド
To sign and publish a transaction such as executing a setNumber
function in the counter contract, run the command below:
cast send --rpc-url=$KAIROS_RPC_URL <CONTRACT-ADDRESS> "setNumber(uint256)" arg --account<ACCOUNT NAME>
Example

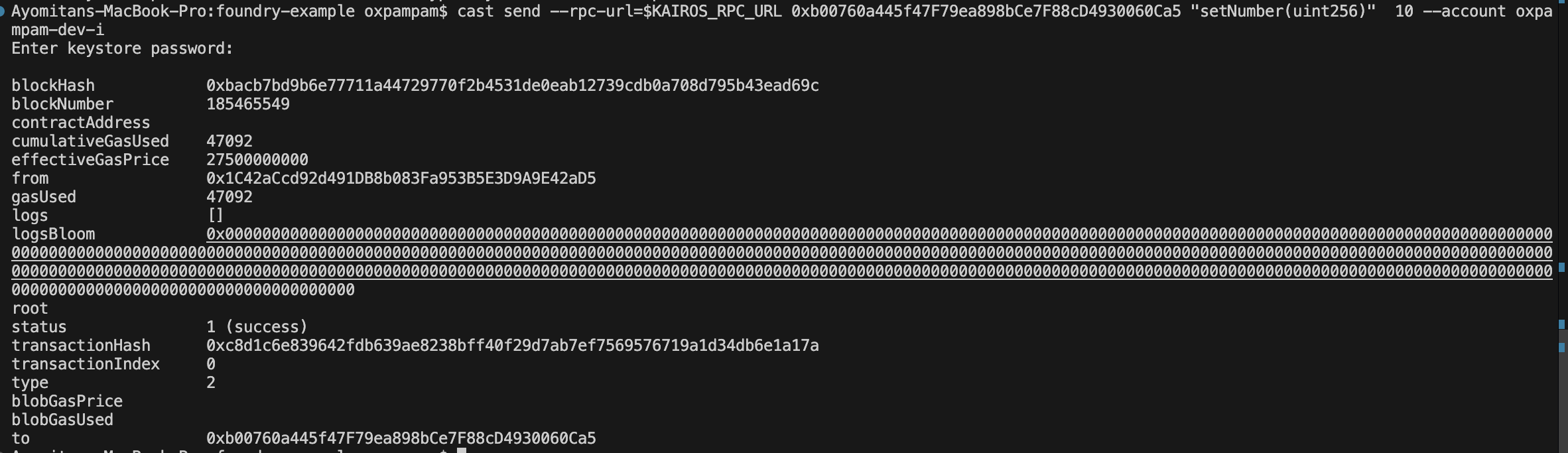

cast send --rpc-url=$KAIROS_RPC_URL 0xb00760a445f47F79ea898bCe7F88cD4930060Ca5 "setNumber(uint256)" 10 --アカウント oxpampam-dev-i
**出力
Crosscheck Number
キャストコール 0xb00760a445f47F79ea898bCe7F88cD4930060Ca5 "number()" --rpc-url $KAIROS_RPC_URL
Output
You should get this data in hexadecimal format:
0x000000000000000000000000000000000000000000000000000000000000000a
However to get your desired result, use cast to convert the above result. In this case, the data is a number, so you can convert it into base 10 to get the result 10:
cast --to-base 0x000000000000000000000000000000000000000000000000000000000000000a 10
Output
Forking Mainnet with Cast and Anvil
Foundry allows us to fork the mainnet to a local development network (Anvil). Also, you can interact and test with contracts on a real network using Cast.
Getting Started
Now that you have your Foundry project up and running, you can fork the mainnet by running the command below:
anvil --fork-url rpc-url
Example

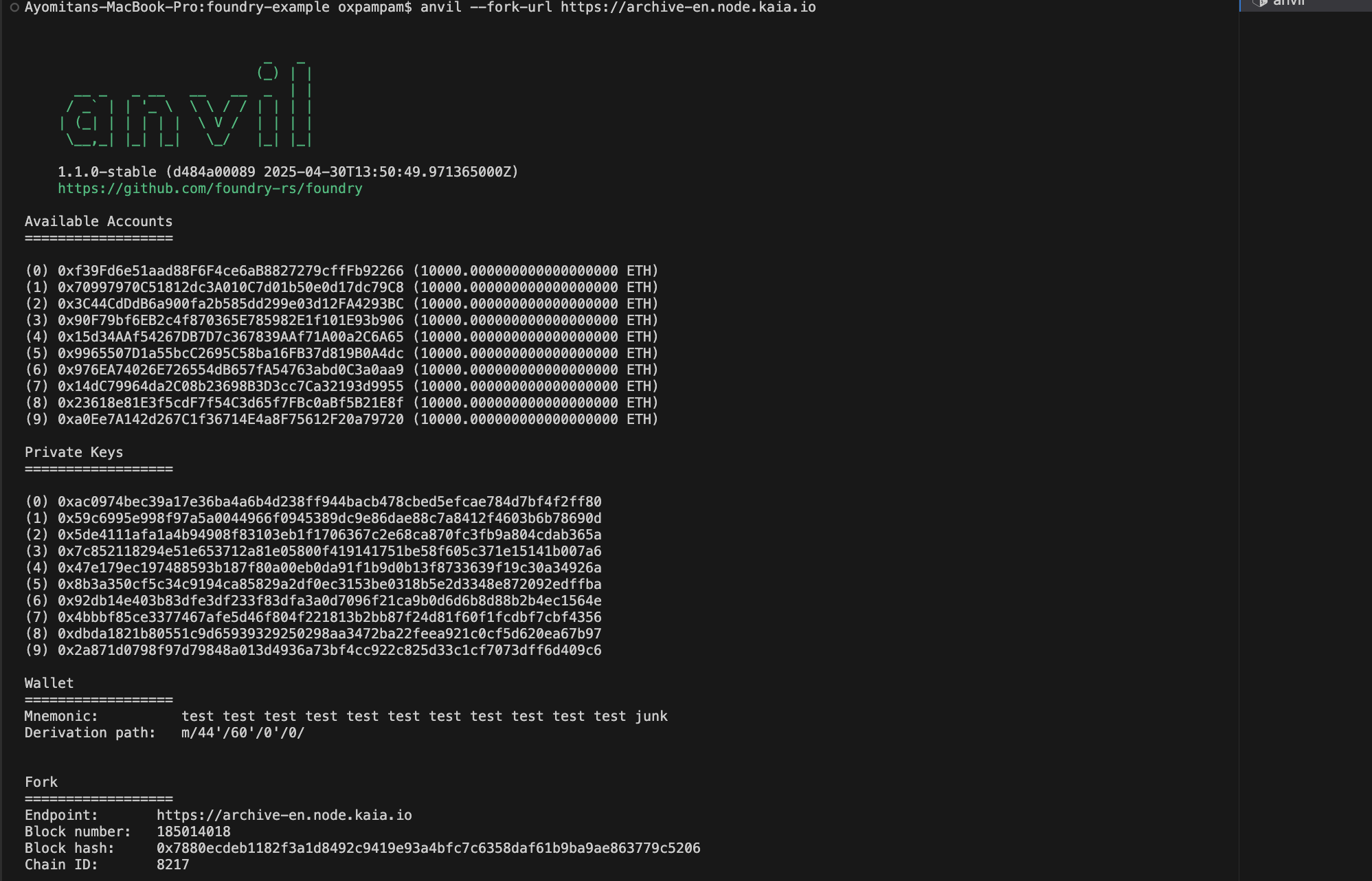

anvil --fork-url https://archive-en.node.kaia.io
Output
After successfully running this command, your terminal looks like the above image. You'll have 10 accounts created with their public and private keys as well 10,000 prefunded tokens. The forked chain's RPC server is listening at 127.0.0.1:8545
.
To verify you have forked the network, you can query the latest block number:
curl --data '{"method":"eth_blockNumber","params":[],"id":1,"jsonrpc":"2.0"}' -H "Content-Type: application/json" -X POST localhost:8545
You can convert the result from the task above using hex to decimal. You should get the latest block number from the time you forked the network. To verify this, cross-reference the block number on Kaiascope.
Illustration
このセクションでは、USDTを保有している人からAnvilが作成したアカウント(0x70997970C51812dc3A010C7d01b50e0d17dc79C8 - Bob)にUSDTトークンを送金する方法について説明します。
Transferring USDT
Kaiascanにアクセスし、USDTトークンの保有者を検索する(こちら)。 Let's pick a random account. この例では、0xb3ff853a137bfe10f3d8965a29013455e1619303
を使用する。
Let's export our contracts and accounts as environment variables:
export BOB=0x70997970C51812dc3A010C7d01b50e0d17dc79C8export USDT=0xd077a400968890eacc75cdc901f0356c943e4fdbexport USDTHolder=0xb3ff853a137bfe10f3d8965a29013455e1619303
キャストコールを使ってBobのUSDT残高を確認する:
cast call $USDT "balanceOf(アドレス)(uint256)" $BOB
Output
同様に、キャストコールを使ってUSDTHolderのUSDT残高を確認することもできる:
cast call $USDT "balanceOf(アドレス)(uint256)" $USDTHolder
Output

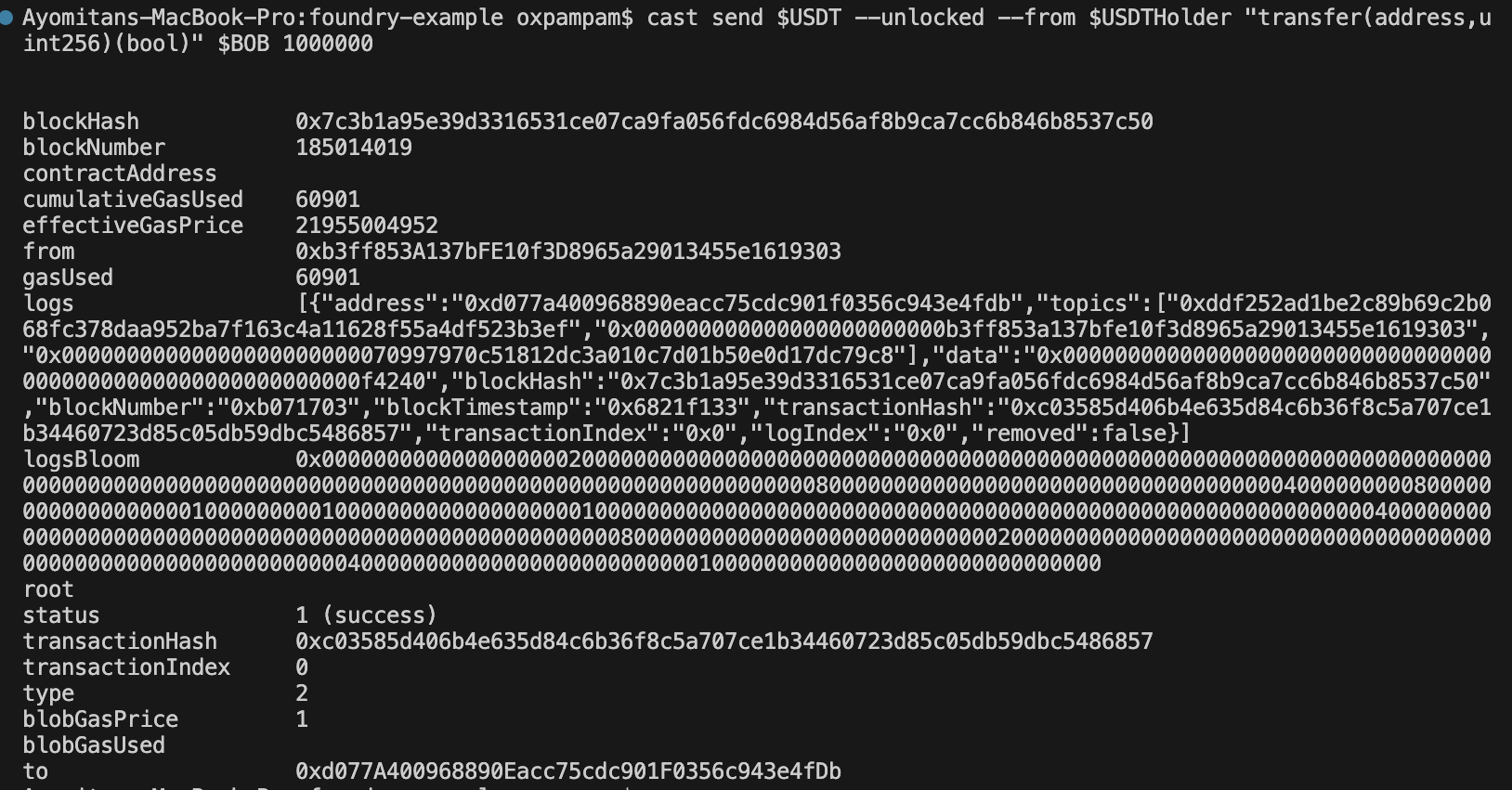

キャスト送信を使って、USDTHolderからBobにトークンを転送してみよう:
# impersonate USDTHoldercast rpc anvil_impersonateAccount $USDTHolder # transfer USDTcast send $USDT --unlocked --from $USDTHolder "transfer(address,uint256)(bool)" $BOB 1000000
Output
Let's check that the transfer worked:
cast call $USDT "balanceOf(アドレス)(uint256)" $BOB
Output
cast call $USDT "balanceOf(アドレス)(uint256)" $USDTHolder
Output
トラブルシューティング
ガス推定誤差
forgeスクリプトを使用してデプロイすると、このエラーに遭遇する可能性があります:

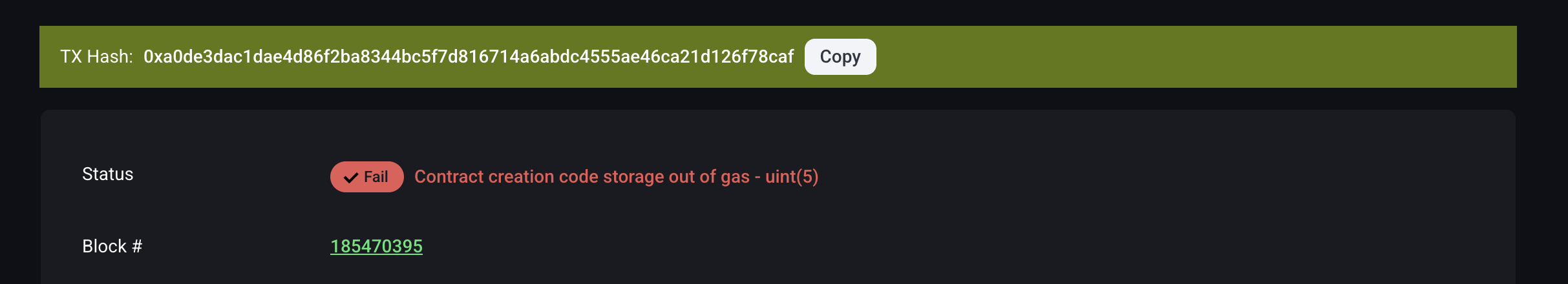

# Transaction Failure❌ [Failed] Hash: 0xa0de3dac1dae4d86f2ba8344bc5f7d816714a6abdc4555ae46ca21d126f78cafError:Transaction Failure: 0xa0de3dac1dae4d86f2ba8344bc5f7d816714a6abdc4555ae46ca21d126f78caf# Explorer上のトランザクションエラーコードError:ガス欠の契約作成コードストレージ
これは通常、配備時のガスの見積もりが不正確だったために起こる。 Foundryのデフォルトのガス推定アルゴリズム(デフォルトの130%乗数)では、Kaiaネットワークで不足することがあり、配備が完了する前にガス欠になることがある。
実際に必要なガスが見積もり量を超えると、契約展開中にトランザクションのガスが不足し、_Contract creation code storage out of gas_エラーが発生する。
ク イックフィックス:手動でガス倍率を設定する。
このように--gas-estimate-multiplierを200以上に増やしてスクリプトを実行する:
# commandforge script script/YourContract.s.sol:YourScript ୧ --chain<chain-id> ୧ --rpc-url $RPC_URL ୧ --broadcast ୧ --gas-estimate-multiplier 200 ୧ --account your-account ୧ -vvvv

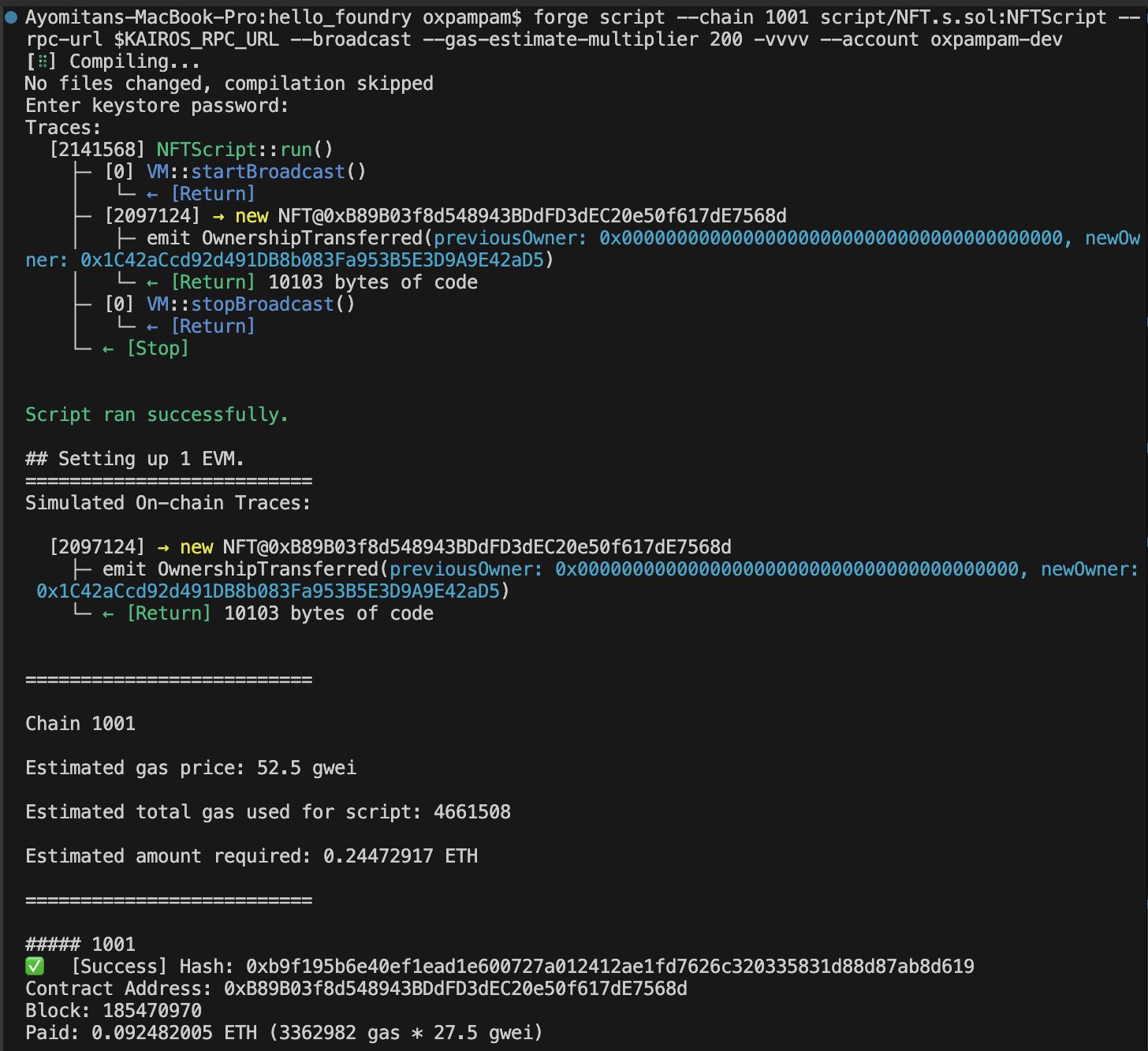

# example forge script --chain 1001 script/NFT.s.sol:NFTScript --rpc-url $KAIROS_RPC_URL --broadcast --gas-estimate-multiplier 200 -vvvv --account oxpampam-dev-i
gas-estimate-multiplier`フラグは、すべてのガス推定値に乗じる相対的なパーセンテージを設定する。 200に設定することで、ガスの見積もりが2倍になり、契約配備を成功させるのに十分な余裕ができる。
結論
このガイドを最後まで読まれた方、おめでとうございます。 ご質問はカイアフォーラムをご覧ください。 しかし、以下は、カイアでFoundryをさらに構築する際に必要となるかもしれない有用なリソースのリストです。
